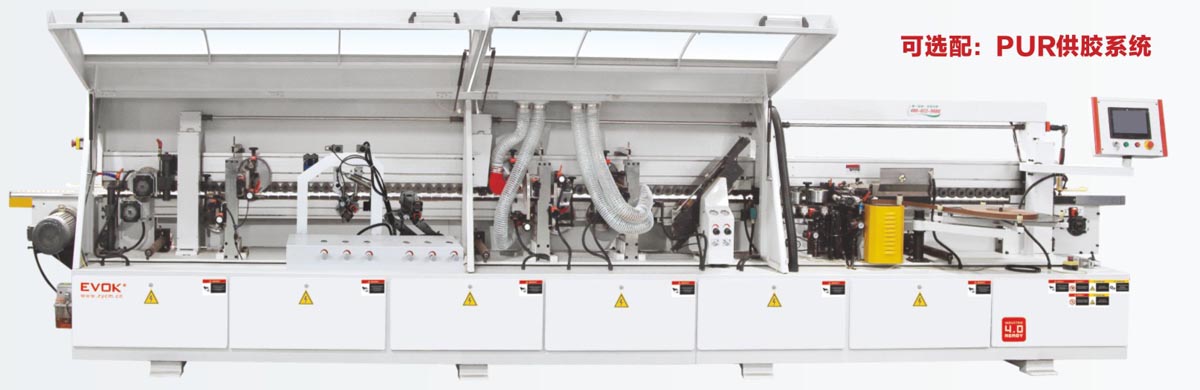

TC-60A 跟蹤仿形全自動封邊機(jī)

Features

1. Utilizing a stalker set to realize corner rounding ,it is a high-tech device.

2. Novel construction, stable performance, suitable for different bandings.

3. Automatically change 2 thicknesses of banding.

4. A best solution for effective and qualitative working.

5. The glue port can be replaced by an optional EVOK made clean-free PUR system.

6. High edge banding speed up to 25-30m/Min.

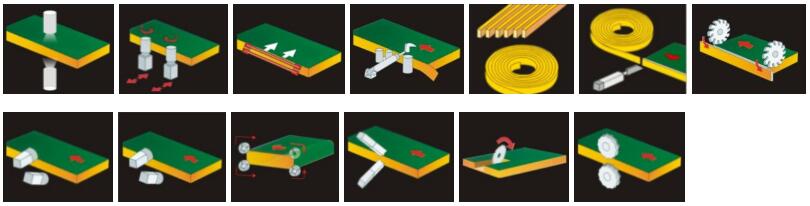

7. Including functions: Spray anti-sticks/Pre-milling/Pre-heating/Gluing/Edge feeding/Edge cutting/Ends trimming/Rough finish/Fine finishing/Corner rounding/Scraping/Scoring/ Polishing

Technical Specs

◎Power source: 380V/50Hz/3HP+N

◎Min. panel width: 60mm

◎Min. panel length:100mm

◎Panel thickness: 10-60mm

◎Banding belt thickness: 0.3-12mm

◎Banding belt width: 12-65mm

◎Stalker banding belt thickness: 1.2-3mm

◎Feeding speed: 10-30m/Min.

◎Air pressure:0.6-0.8Mpa

◎Total power:22KW

◎Machine size:7200x950x1750mm

◎Machine weight:2500kg
